T Slot Horizontal Clamp

Shorten the setup time and optimize your tool clamping process

The ERC rocker clamp is a single acting hydraulic cylinder, designed to fit press platens with T-slots. This enables easy clamping the mold or die.

  1. These rails have continuous T-slots for attaching fittings. Use this versatile framing to configure machine guards, enclosures, carts, and workstations. T-Slotted Framing Structural Brackets Connect T-slotted rails and reinforce joints for structural stability.
  2. The center height of the in-line clamp is increased to 1 1/4'. Includes four bolts for mounting a clamp and two 1/4-20 T-bolts and knobs. We also offer the T-track toggle clamp plate as a set with a high-profile horizontal, low-profile horizontal, in-line or vertical clamp.

Improved design

Our R&D department has added special rollers to the design of the ERC hydraulic rocker clamp. Now horizontal as well as vertical machines are supported.

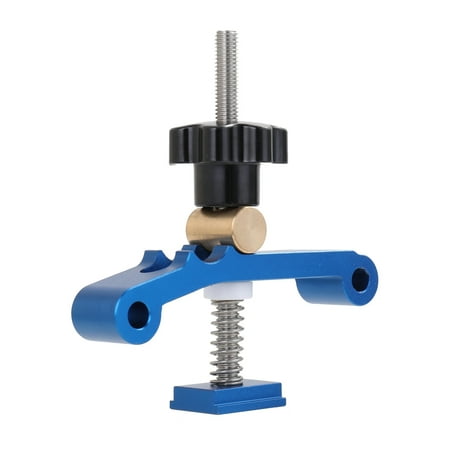

Auto-Adjust Horizontal Dog Clamp Item# T28108 $ 36. 95 Auto Adjust Horizontal T-Slot Clamp Item# T28110 $ 39. 95 Hold Down Clamp for T-Slot Track Item# D2726 $ 6. 75 Auto Adjust In-Line T-Slot Clamp Item# T28111 $ 39. 95 6' Bench Clamp with Automaxx Item# T25795 $ 42.

ERC – the perfect fit

Drill Press T Slot Clamps

The rocker clamp is fitted with a T-slot pin which screws in and out of the clamp base. This allows easy and quick adjustment of the ERC to the DIN 650 T-slot.

Advantages

– fits in any T-slot (according to DIN 650); versatile in application
– very suitable to retrofit; flexible in practice
– ordering overview; quick and simple ordering
– single piece construction; fast delivery times
– compact design; fitting narrow clamping edges

Application

• on press beds and rams
• for clamping and locking processes on machines and equipment
• for space constrained environments
• at ambient temperatures of up to max. 200°C

Features:

• for 20 -40 -60 -100-160-250 kN
• suitable for non-standardized die back-plates
• unique adjustable T-slot pin; fi ts in any T-slot according to DIN 650
• standard handles on bigger ERC models
• on bigger models handles come standard
• maximum working pressure: 350 bar
• single acting, spring returned clamping system
• one oil connection

Add extra functionality to the standard ERC clamp with the following options:

Options

In addition to the standard clamp, there is the possibility to add functionality with the following options:

  • Support roller
  • Proximity sensor
  • Air cylinder
  • Check valve

More information on the options, specific technical details and ordering info can be downloaded in the menu on your right – the ERC instruction sheets.
